LED lamp is a supporting product of drum washing machine.It is used to lighting when put clothes into the washing machine.
SPECIFICATIONS
|
Model |
ZD-6 |
|
Power |
0.3W |
|
Voltage |
DC5.0V |
|
Current |
90.0±10.0 |
|
Drive method |
Constant current drive |
|
Color temperature / wavelength |
3000/4000/5000/6000K blue light 460-470nm, green light 520-530nm, red light 620-640nm |
|
Luminous flux |
25-36LM 4-8LM 15-25LM 5-10LM |
|
Color rendering index |
Ra≥80 |
|
Material |
PC |
|
IP level |
IP65 |
|
Connector |
2P/3P |
Working Environment
◎Working temperature: -30℃～45℃
◎Humidity: 5%～95%RH
◎Storage temperature: -30℃～50℃
◎No gas, steam, chemical deposits, dust, dirt and explosive corrosive media that seriously affect electrical insulation in the installation site.
◎No severe vibration or bumps in the installation site.

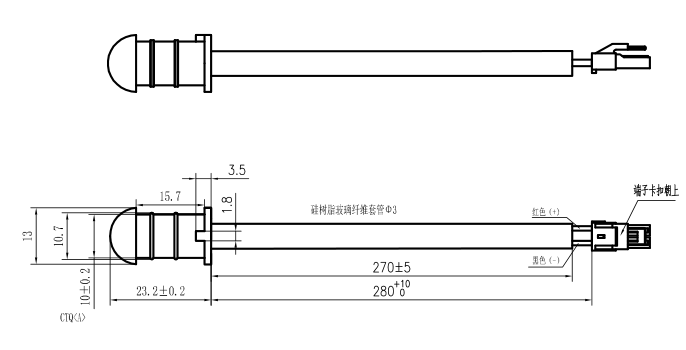

Dimension
ACKING

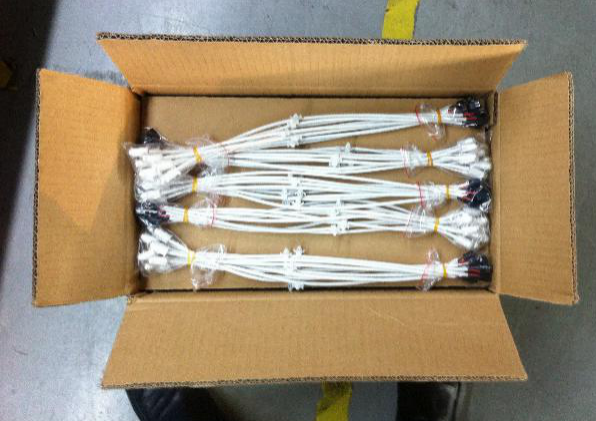

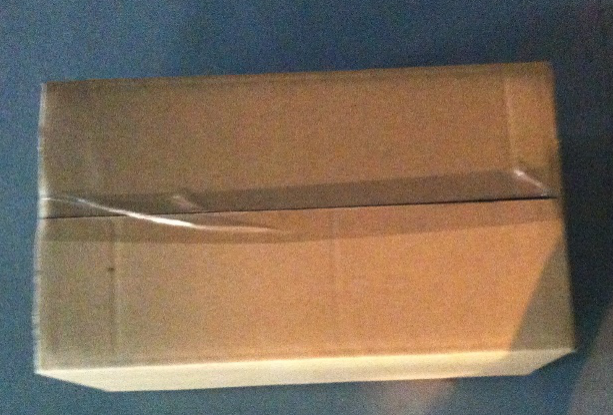

Every 10 pieces in one bundle. Cover the connector and lampshade with ziplock bags. Every 5 bundles on one layer.There are totally 5 layers (250pcs) in one carton box.
